Perkins珀金斯2206配件CH12445正時齒輪密封墊

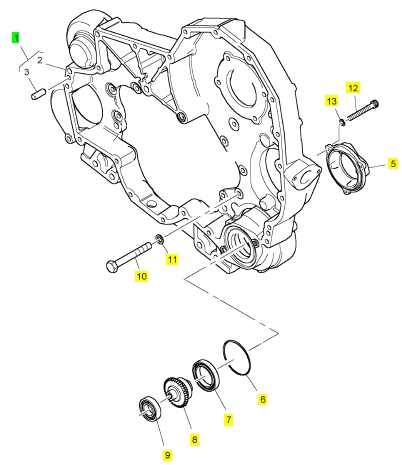

項序 零配件號碼 最近的零配件號碼  描述

1 CH12443 1 CH12443 殼

4 CH12445 1 CH12445 正時齒輪密封墊

5 CH12444 1 CH12444 蓋

6 CH10620 1 CH10620 密封墊O形圈

7 CH12439 1 CH12439 滾珠軸承

8 CH12440 1 CH12440 附加的傳動機構

9 CH12382 1 CH12382 滾珠軸承

10 CH12449 9 CH12449 螺拴

11 CH10277 9 CH10277 墊圈

12 CH12448 3 CH12448 螺拴

13 CH10277 3 CH10277 墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12443 1 CH12443 HOUSING

4 CH12445 1 CH12445 GASKET - TIMING CASE

5 CH12444 1 CH12444 COVER

6 CH10620 1 CH10620 SEAL - O RING

7 CH12439 1 CH12439 BALL BEARING

8 CH12440 1 CH12440 AUXILIARY GEAR

9 CH12382 1 CH12382 BALL BEARING

10 CH12449 9 CH12449 BOLT

11 CH10277 9 CH10277 WASHER

12 CH12448 3 CH12448 BOLT

13 CH10277 3 CH10277 WASHER

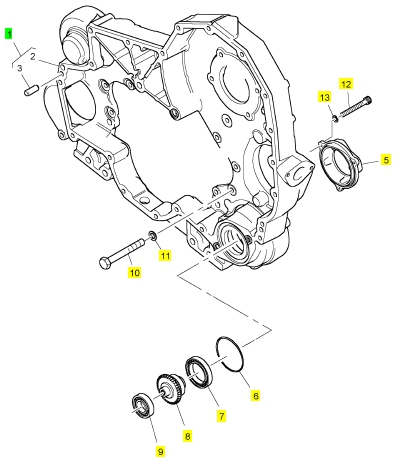

項序 零配件號碼 最近的零配件號碼  描述

1 CH12443 1 CH12443 殼

4 CH12445 1 CH12445 正時齒輪密封墊

5 CH12444 1 CH12444 蓋

6 CH10620 1 CH10620 密封墊O形圈

7 CH12439 1 CH12439 滾珠軸承

8 CH12440 1 CH12440 附加的傳動機構

9 CH12382 1 CH12382 滾珠軸承

10 CH12449 9 CH12449 螺拴

11 CH10277 9 CH10277 墊圈

12 CH12448 3 CH12448 螺拴

13 CH10277 3 CH10277 墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12443 1 CH12443 HOUSING

4 CH12445 1 CH12445 GASKET - TIMING CASE

5 CH12444 1 CH12444 COVER

6 CH10620 1 CH10620 SEAL - O RING

7 CH12439 1 CH12439 BALL BEARING

8 CH12440 1 CH12440 AUXILIARY GEAR

9 CH12382 1 CH12382 BALL BEARING

10 CH12449 9 CH12449 BOLT

11 CH10277 9 CH10277 WASHER

12 CH12448 3 CH12448 BOLT

13 CH10277 3 CH10277 WASHER

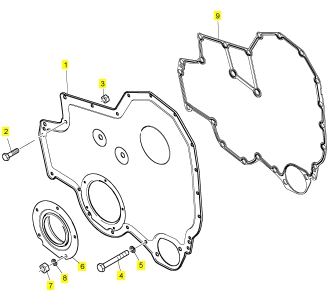

項序 零配件號碼 最近的零配件號碼  描述

1 CH12446 1 CH12446 蓋

2 CH10041 1 CH10041 螺拴

3 CH12450 1 CH12450 螺帽

4 CH12447 17 CH12447 螺拴

5 CH10277 17 CH10277 墊圈

6 CH12442 1 CH12442 密封墊

7 CH12450 4 CH12450 螺帽

8 CH12452 4 CH12452 墊圈

9 CH12441 1 CH12441 正時齒輪箱墊片

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12446 1 CH12446 COVER

2 CH10041 1 CH10041 BOLT

3 CH12450 1 CH12450 NUT

4 CH12447 17 CH12447 BOLT

5 CH10277 17 CH10277 WASHER

6 CH12442 1 CH12442 SEAL - OIL

7 CH12450 4 CH12450 NUT

8 CH12452 4 CH12452 WASHER

9 CH12441 1 CH12441 SEAL - TIMING CASE COVER
