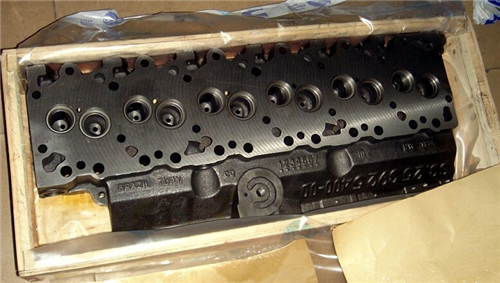

奧林匹亞perkins配件CH12455 汽缸蓋組件

項序 零配件號碼 最近的零配件號碼  描述

1 CH12455 1 CH12455 汽缸蓋組件

(1) 半徑/CH12455 1 半徑/CH12455 汽缸蓋總成 -EXCH

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12455 1 CH12455 CYLINDER HEAD ASSEMBLY

(1) R/CH12455 1 R/CH12455 CYLINDER HEAD KIT - EXCH

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 CYLINDER HEAD ASSEMBLY

14 CH12473 12 CH12473 TAB WASHER

15 CH12754 24 CH12754 VALVE SPRING OUTER

16 CH12475 24 CH12475 VALVE SPRING INNER

17 CH12476 24 CH12476 SHIELD

18 CH10019 48 CH10019 VALVE COLLET

19 CH12627 12 CH12627 EXHAUST VALVE

20 CH12626 12 CH12626 INTAKE VALVE

21 CH12480 1 CH12480 SEAL - O RING

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

3 CH10032 35 CH10032 PLUG

4 CH10286 7 CH10286 PLUG

5 CH11880 7 CH11880 SEAL - O RING

6 CH12582 6 CH12582 SLEEVE

7 CH10723 6 CH10723 SEAL - O RING

8 CH10727 12 CH10727 SEAL - O RING

9 CH12474 1 CH12474 PLUG

10 CH11621 1 CH11621 SEAL - O RING

11 CH12581 12 CH12581 VALVE SEAT INSERT

12 CH12580 12 CH12580 VALVE SEAT INSERT

13 CH12583 24 CH12583 VALVE GUIDE
