威爾信珀金斯柴油發電機組CH11217空氣過濾器

項序 零配件號碼 最近的零配件號碼  描述

2 1 空氣過濾器體

3 CH11217 1 CH11217 主空氣過濾器

4 CH11288 1 CH11288 蓋

5 26510350 1 26510350 閥

6 CV10891 1 CV10891 帽

6 CH11277 1 CV10891 帽

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH12714 1 CH12714 ELBOW

1 OE47125 1 CH12714 ELBOW

2 CH11174 1 CH11174 AIR DUCT

3 ST91130 1 ST91130 HOSE

4 ST46419 4 ST46419 HOSE CLIP

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

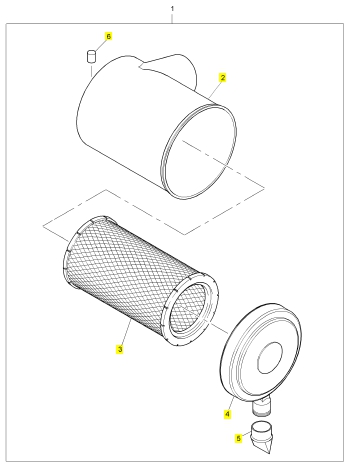

1 CH11127 1 CH11127 AIR FILTER ASSEMBLY

1 CH11127 1 CH11127 AIR FILTER ASSEMBLY

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 1 AIR FILTER BODY

3 CH11217 1 CH11217 MAIN AIR FILTER

4 CH11288 1 CH11288 COVER

5 26510350 1 26510350 VALVE

6 CV10891 1 CV10891 CAP

6 CH11277 1 CV10891 CAP

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CV5479 1 CV5479 INDICATOR

2 CH11216 1 CH11216 BAND

3 2315A381 2 2315A381 METRIC BOLT

3 CH11241 2 2315A381 BOLT

4 CV70393 2 CV70393 WASHER

5 2318D010 2 2318D010 METRIC NUT

5 CH11242 2 CH11242 LOCKNUT

建德哪里有賣珀金斯配件,富陽哪里有賣珀金斯配件,臨安哪里有賣珀金斯配件,余姚哪里有賣珀金斯配件,哪里有賣珀金斯配件慈溪,奉化哪里有賣珀金斯配件,瑞安哪里有賣珀金斯配件,樂清哪里有賣珀金斯配件,海寧哪里有賣珀金斯配件,平湖哪里有賣珀金斯配件,桐鄉哪里有賣珀金斯配件,諸暨哪里有賣珀金斯配件,上虞哪里有賣珀金斯配件,嵊州哪里有賣珀金斯配件,蘭溪哪里有賣珀金斯配件,義烏哪里有賣珀金斯配件,東陽哪里有賣珀金斯配件,

珀金斯柴油機配件CH10774 排氣岐管

項序 零配件號碼 最近的零配件號碼  描述

1 CH10774 1 CH10774 排氣岐管

2 CH10777 6 CH10777 密封墊 - 排氣岐管

3 CH10776 11 CH10776 間隔器

4 CH10775 11 CH10775 圖釘

5 CH10541 12 CH10255 墊圈

6 CH10734 12 CH10734 鎖緊螺母

7 T400179 1 T400179 排氣岐管

7 CH10901 1 T400179 排氣岐管

8 CH10756 1 CH10756 間隔器

9 CH10772 1 CH10772 圖釘

10 CH10774 1 CH10774 排氣岐管

11 T400180 4 T400180 圖釘

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH10343 1 CH10343 INLET ELBOW

2 CH10331 1 CH10331 GASKET

3 CH10262 1 CH10262 PLUG

4 CH10567 4 CH10567 BOLT

5 CH10541 4 CH10255 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE36041 1 OE36041 EXHAUST FLANGE

2 CV70399 8 CV70399 BOLT

3 CV70394 8 CV70394 WASHER

4 CV1343 8 CV1343 METRIC NUT

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11927 1 CH11927 GASKET - EXHAUST OUTLET

1 OE33460 1 CH11927 GASKET - EXHAUST

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

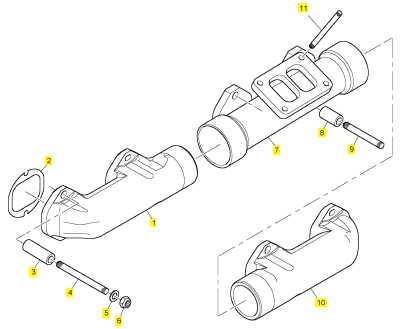

1 CH10774 1 CH10774 EXHAUST MANIFOLD

2 CH10777 6 CH10777 GASKET - EXHAUST MANIFOLD

3 CH10776 11 CH10776 SPACER

4 CH10775 11 CH10775 STUD

5 CH10541 12 CH10255 WASHER

6 CH10734 12 CH10734 LOCKNUT

7 T400179 1 T400179 EXHAUST MANIFOLD

7 CH10901 1 T400179 EXHAUST MANIFOLD

8 CH10756 1 CH10756 SPACER

9 CH10772 1 CH10772 STUD

10 CH10774 1 CH10774 EXHAUST MANIFOLD

11 T400180 4 T400180 STUD
