沃爾沃TAD1631G/GE柴油機(jī)噴油泵零部件864855

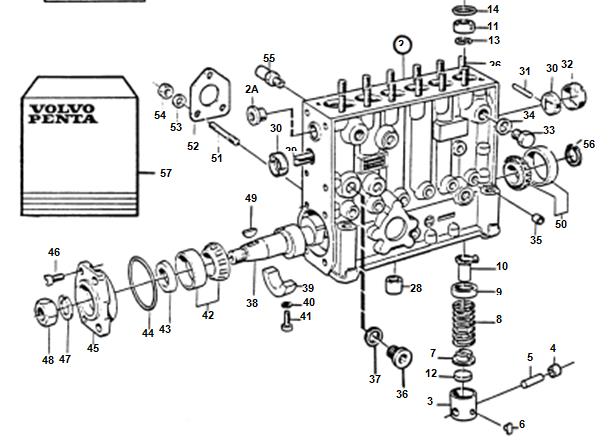

Ref 1	Part No. 864855	Qty 1	Description Injection pump	Notes
	3803713	1	Injection pump, exch	Exchange unit
1A	863476	1	Governor
1B	863474	1	Feed pump
2		1	Pump housing
2A		1	Plug
3		6	Push rod
4		6	Bearing
5		6	Shaft
6		6	Locating plate
7	862408	6	Spring disc
8	862407	6	Compression spring
9	239984	6	Spring disc
10	862406	6	Sleeve
11		6	Cardboard tube
12		6	Pressure plate
13		6	Lock ring
14	862402	6	O-ring
15 16	240422	X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X 12	Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer Adjusting washer O-ring	TH=0,40mm TH = 0,45mm TH = 0,50mm TH = 0,60mm TH = 0,70mm TH = 0,75mm TH = 0,80mm TH = 0,85mm TH = 0,90mm TH = 0,95mm TH = 1,00mm TH = 1,05mm TH = 1,10mm TH = 1,15mm TH = 1,20mm TH = 1,25mm TH = 1,30mm TH = 1,35mm TH = 1,40mm TH = 1,45mm TH = 1,50mm TH = 1,55mm TH = 1,60mm TH = 1,65mm TH = 1,70mm TH = 1,75mm TH=1,80mm TH = 1,90mm TH=2,00mm TH=2,10mm TH=2,15mm TH=2,20mm
17	863498	6	Pump element
18	1697951	6	Washer
19	863499	6	Delivery valve
20	862397	6	Compression spring
21	240972	X	Washer	TH=0,20mm
22	240973	X 6	Washer Spacer	TH = 0,50mm
23	862400	6	O-ring
24		6	Holder
25		12	Washer
26		12	Stud
27		12	Nut
28		6	Cardboard tube
29		1	Control rod
30		2	Guide sleeve
31		1	Lock pin

Ref	Part No.	Qty	Description	Notes
32		1	Bushing
33	847439	1	Screw
34	969011	1	Gasket	(239897)
35		6	Cardboard tube
36		1	Plug
37	240017	1	Gasket
38		1	Camshaft
39		1	Bearing
40		2	Sealing ring
41		2	Screw
42		1	Bearing
43	3825543	1	Sealing ring	(862422)
44	862423	1	O-ring
45		1	Bearing cover
46		4	Screw
47	941914	1	Spring washer
48	955807	1	Nut
49	35168	1	Key
50		1	Bearing
51		3	Stud
52	863370	1	Gasket	(6232208)
53	941906	3	Spring washer
54	940197	3	Nut
55	479775	1	Overflow valve	(35096). M14
	3825154	1	Overflow valve	(35096). M16
56		1	Lock ring
57	862425	1	Small parts kit
