perkins 2206 2306 2506 2806a-g13tag配件 三濾

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

1 CH12108 1 CH12108 COVER

1 ch12108 1 ch12108蓋

2 CH10166 1 CH10166 GASKET

2 ch10166 1 ch10166墊片

3 T401032 1 T401032 SEAL

3 t401032 1 t401032密封

4 CH12110 7 CH12110 BOLT

4 ch12110 7 ch12110螺栓

5 CH10086 7 CH10086 WASHER

5 ch10086 7 ch10086墊圈

6 CH10246 6 CH10246 BOLT

6 ch10246 6 ch10246螺栓

7 CH10086 6 CH10086 WASHER

7 ch10086 6 ch10086墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

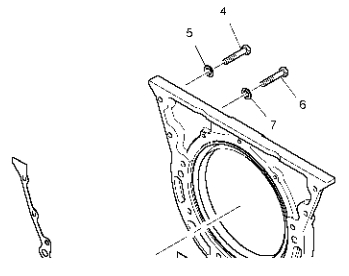

1 CH12535 1 CH12535 FLYWHEEL HOUSING

1 ch12535 1 ch12535飛輪殼

2 CH10165 1 CH10165 COVER

2 ch10165 1 ch10165蓋

3 CH11892 1 CH11892 SEAL - O RING

3 ch11892 1 ch11892密封O形環

4 CH12449 2 CH12449 BOLT

4 ch12449 2 ch12449螺栓

5 CH10277 2 CH10277 WASHER

5 ch10277 2 ch10277墊圈

6 T400249 1 T400249 PLUG

6 t400249 1 t400249插頭

7 T409315 1 T409315 SEAL - O RING

7 t409315 1 t409315密封O形環

8 CH12151 12 CH12151 BOLT

8 ch12151 12 ch12151螺栓

9 T401037 3 T401037 PLUG

9 t401037 3 t401037插頭

10 CH10291 1 CH10291 PLUG

10 ch10291 1 ch10291插頭

11 T400544 1 T400544 SEAL - O RING

11 t400544 1 t400544密封O形環

12 CH12536 1 CH12536 SPACER

12 ch12536 1 ch12536間隔

13 CH12536 1 CH12536 SPACER

13 ch12536 1 ch12536間隔

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

1 T401038 1 T401038 CYLINDER HEAD COVER

1 t401038 1 t401038缸蓋罩

2 CH12142 1 CH12142 SEAL - CYL HEAD COVER

2 ch12142 1 ch12142共青團蓋密封

3 CH12143 10 CH12143 BOLT

3 ch12143 10 ch12143螺栓

4 CH11894 10 CH11894 WASHER

4 ch11894 10 ch11894墊圈

5 CH12140 10 CH12140 SEAL

5 ch12140 10 ch12140密封

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

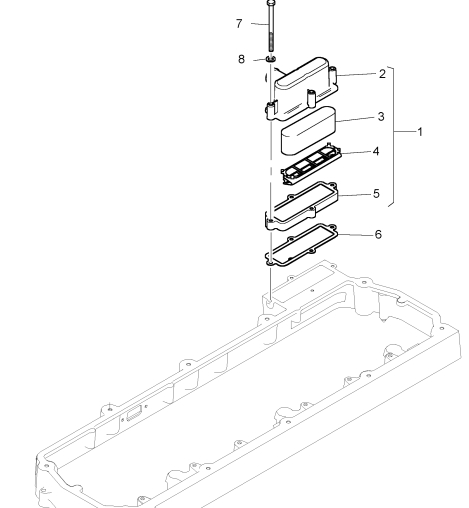

1 CH12628 1 CH12628 BREATHER

1 ch12628 1 ch12628呼吸

6 CH12457 1 CH12457 GASKET - BREATHER

6 ch12457 1 ch12457墊片-呼吸

7 CH12629 4 CH12629 BOLT

7 ch12629 4 ch12629螺栓

8 CH10303 4 CH10303 WASHER

8 ch10303 4 ch10303墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

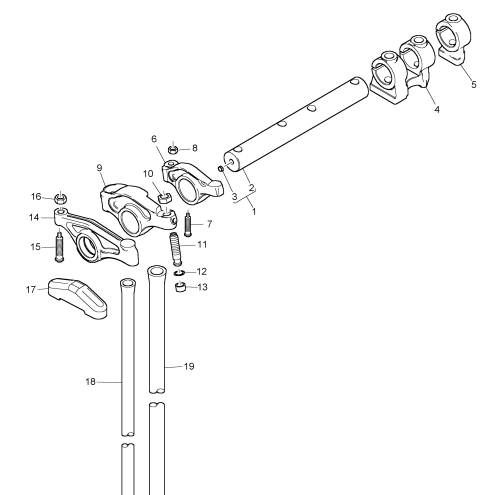

1 CH12481 3 CH12481 SHAFT

1 ch12481 3 ch12481軸

4 CH12484 3 CH12484 CLAMP

4 ch12484 3 ch12484夾

5 CH12483 6 CH12483 COLLAR

5 ch12483 6 ch12483領

6 T400226 6 T400226 ROCKER ARM

6 t400226 6 t400226搖臂

7 CH12513 6 CH12513 SCREW

7 ch12513 6 ch12513螺釘

8 CH11865 6 CH11865 NUT

8 ch11865 6 ch11865螺母

9 T401133 6 T401133 ROCKER ARM

9 t401133 6 t401133搖臂

10 CH12509 6 CH12509 NUT

10 ch12509 6 ch12509螺母

11 T401134 6 T401134 ADJUSTER

11 t401134 6 t401134調節器

12 CH10229 6 CH10229 SEAL - O RING

12 ch10229 6 ch10229密封O形環

13 CH12702 6 CH12702 PIVOT

13 ch12702 6 ch12702樞軸

14 CH12514 6 CH12514 ROCKER ARM

14 ch12514 6 ch12514搖臂

15 CH12513 6 CH12513 SCREW

15 ch12513 6 ch12513螺釘

16 CH11865 6 CH11865 NUT

16 ch11865 6 ch11865螺母

17 CH12278 12 CH12278 BRIDGE PIECE

17 ch12278 12 ch12278過橋

18 CH12795 12 CH12795 PUSHROD

18 ch12795 12 ch12795推桿

19 CH12808 6 CH12808 PUSHROD

19 ch12808 6 ch12808推桿

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

1 CH12586 1 CH12586 SHAFT

1 ch12586 1 ch12586軸

4 CH12590 1 CH12590 BRACKET

4 ch12590 1 ch12590支架

5 CH11807 7 CH11807 BOLT

5 ch11807 7 ch11807螺栓

6 CH12587 12 CH12587 ROLLER

6 ch12587 12 ch12587輥

7 CH12585 6 CH12585 ROLLER

7 ch12585 6 ch12585輥

8 CH12589 5 CH12589 BRACKET

8 ch12589 5 ch12589支架

9 CH12588 1 CH12588 BRACKET

9 ch12588 1 ch12588支架

10 CH12591 1 CH12591 DOWEL

10 ch12591 1 ch12591銷

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

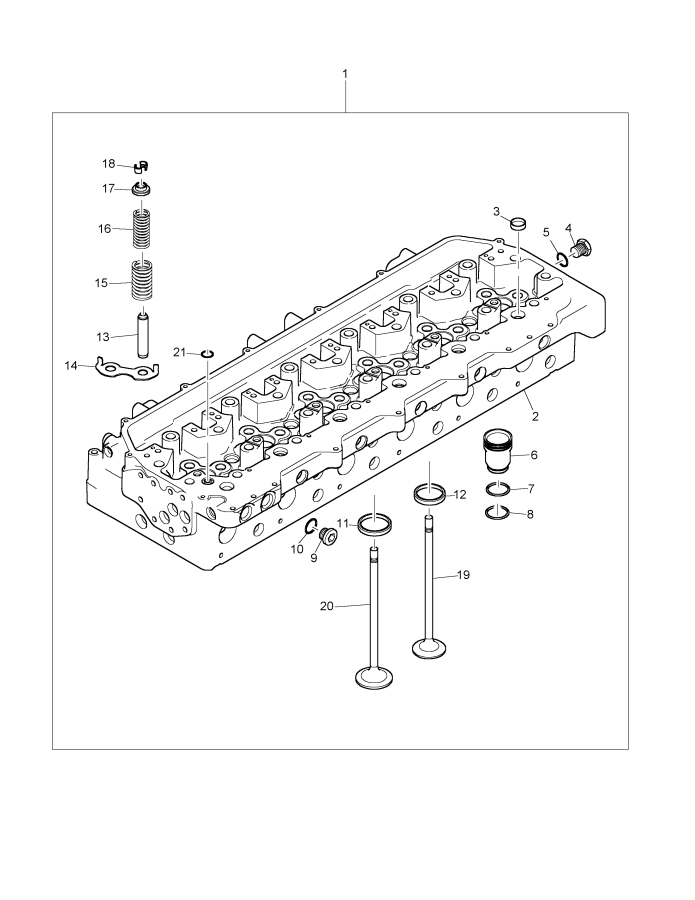

1 T401135 1 T401135 CYLINDER HEAD ASSEMBLY

1 t401135 1 t401135缸頭組件

(1) T401135R 1 T401135R CYLINDER HEAD KIT - EXCH

（1）t401135r 1 t401135r缸蓋包交換

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

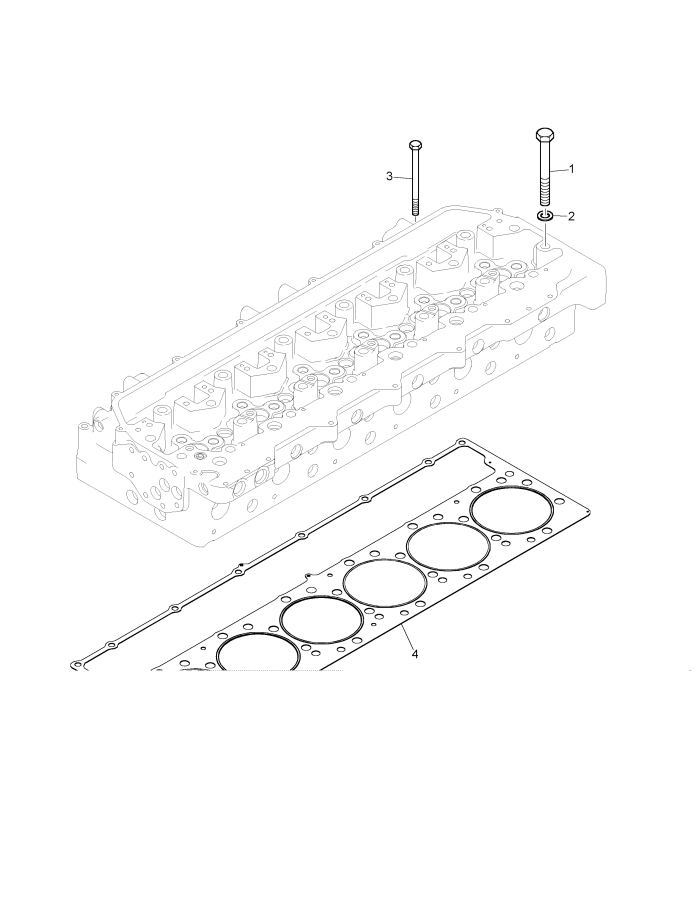

1 CH12569 26 CH12569 CYLINDER HEAD BOLT

1 ch12569 26 ch12569缸蓋螺栓

2 CH12571 26 CH12571 WASHER

2 ch12571 26 ch12571墊圈

3 CH12570 8 CH12570 BOLT

3 ch12570 8 ch12570螺栓

4 CH12454 1 CH12454 GASKET - CYLINDER HEAD

4 ch12454 1 ch12454墊片，汽缸頭

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

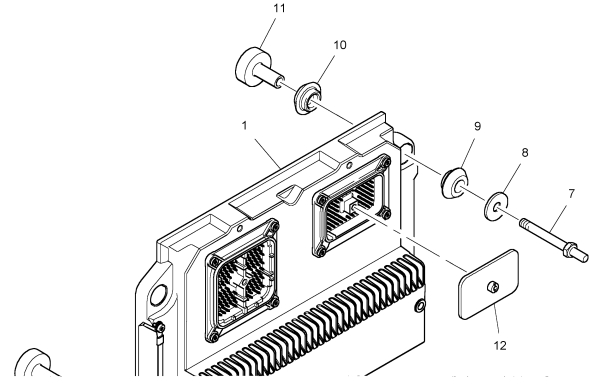

1 T401236 1 T401236 ENGINE CONTROL MODULE

1 t401236 1 t401236發動機ECM控制模塊

2 T401238 2 T401238 STUD

2 t401238 2 t401238螺柱

3 CH10279 2 CH10279 WASHER

3 ch10279 2 ch10279墊圈

4 CH10272 2 CH10272 VIBRATION MOUNT

4 ch10272 2 ch10272振山

5 CH10272 2 CH10272 VIBRATION MOUNT

5 ch10272 2 ch10272振山

6 T401237 2 T401237 SPACER

6 t401237 2 t401237間隔

7 T400642 2 T400642 BOLT

7 t400642 2 t400642螺栓

8 CH10279 2 CH10279 WASHER

8 ch10279 2 ch10279墊圈

9 CH10272 2 CH10272 VIBRATION MOUNT

9 ch10272 2 ch10272振山

10 CH10272 2 CH10272 VIBRATION MOUNT

10 ch10272 2 ch10272振山

11 T401237 2 T401237 SPACER

11 t401237 2 t401237間隔

12 CH12655 1 CH12655 COVER

12 ch12655 1 ch12655蓋

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

1 T401171 1 T401171 MODULE

1 t401171 1 t401171模塊

7 T401170 3 T401170 BOLT

7 t401170 3 t401170螺栓

8 CH10277 3 CH10277 WASHER

8 ch10277 3 ch10277墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

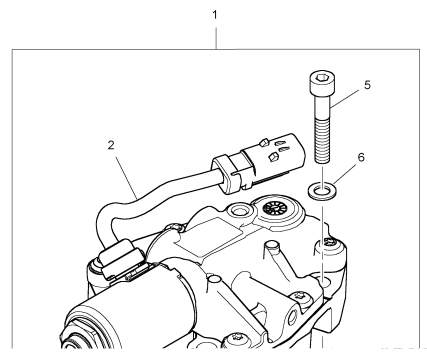

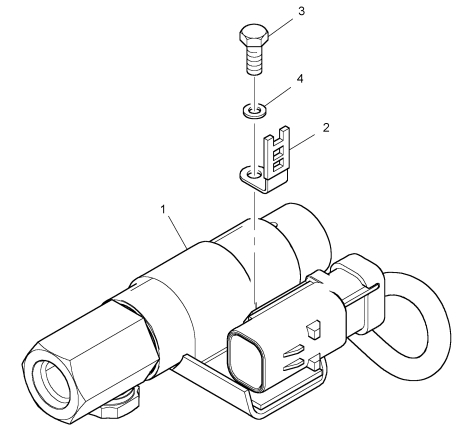

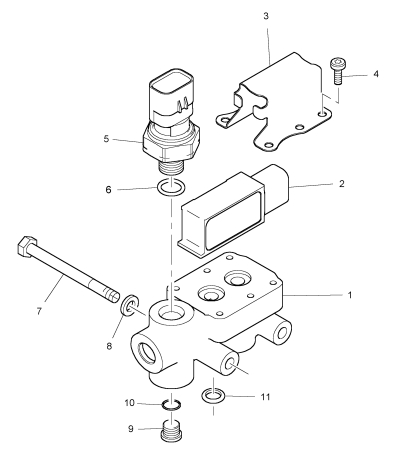

1 T401341 1 T401341 VALVE

1 t401341 1 t401341閥門

2 CH10420 1 CH10420 WIRING CLIP

2 ch10420 1 ch10420接線夾

3 CH12665 1 CH12665 BOLT

3 ch12665 1 ch12665螺栓

4 CH11819 1 CH11819 WASHER

4 ch11819 1 ch11819墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

1 CH12446 1 CH12446 COVER

1 ch12446 1 ch12446蓋

2 CH10041 1 CH10041 BOLT

2 ch10041 1 ch10041螺栓

3 CH10277 1 CH10277 WASHER

3 ch10277 1 ch10277墊圈

4 CH12450 1 CH12450 NUT

4 ch12450 1 ch12450螺母

5 CH12447 17 CH12447 BOLT

5 ch12447 17 ch12447螺栓

6 CH10277 17 CH10277 WASHER

6 ch10277 17 ch10277墊圈

7 CH12442 1 CH12442 SEAL - OIL

7 ch12442 1 ch12442密封油

8 CH12450 5 CH12450 NUT

8 ch12450 5 ch12450螺母

9 CH10303 5 CH10303 WASHER

9 ch10303 5 ch10303墊圈

10 CH12441 1 CH12441 SEAL - TIMING CASE COVER

10 ch12441 1 ch12441密封正時箱蓋

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

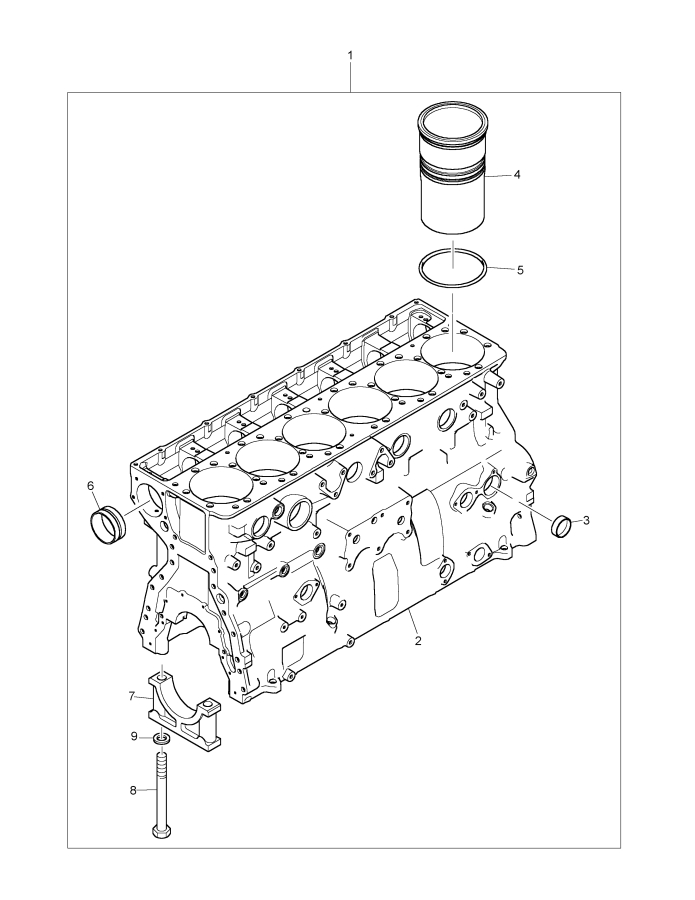

1 T401142 1 T401142 CYLINDER BLOCK ASSEMBLY

1 t401142 1 t401142缸體總成

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

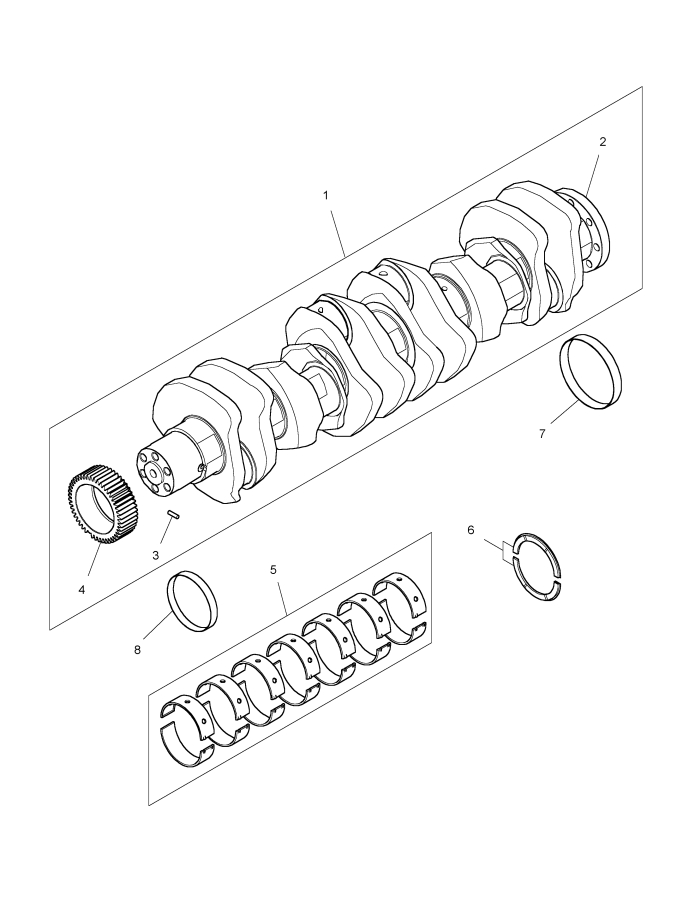

1 T401145 1 T401145 CRANKSHAFT ASSEMBLY

1 t401145 1 t401145曲軸總成

5 KRP3120 1 KRP3120 MAIN BEARING KIT

5 krp3120 1 krp3120主軸承盒

(5) KRP3120/051 1 KRP3120/051 MAIN BEARING KIT - U/S

（5）051 / 1 / 051 krp3120 krp3120主軸承盒U / S

6 KRP3207 1 KRP3207 THRUST WASHER KIT

6 krp3207 1 krp3207推力墊圈套件

7 CH12496 1 CH12496 SLEEVE

7 ch12496 1 ch12496套

8 CH12497 1 CH12497 SLEEVE

8 ch12497 1 ch12497套

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

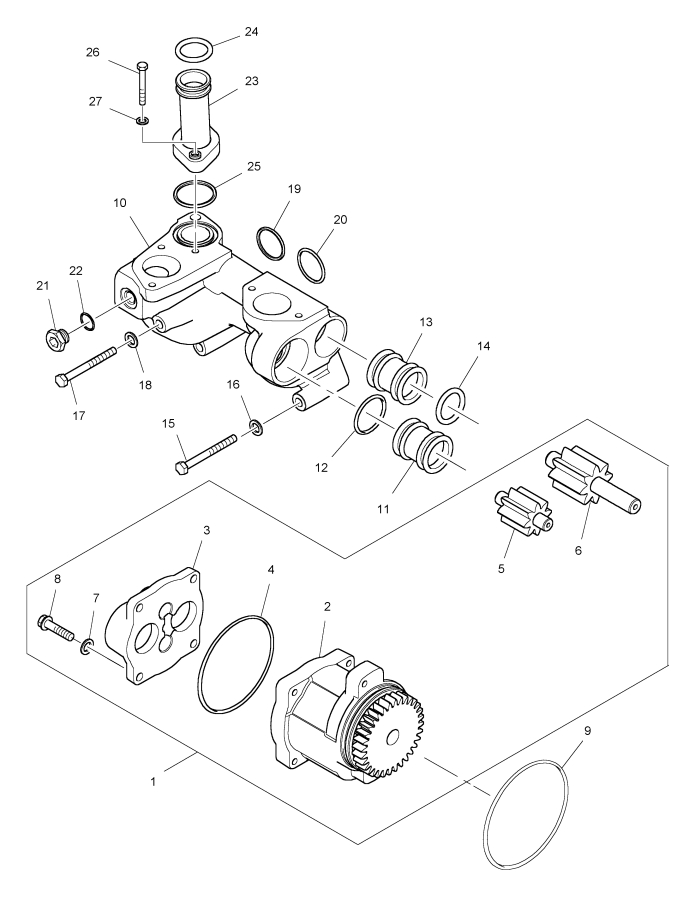

1 T401157 1 T401157 OIL PUMP

1 t401157 1 t401157油泵

9 CH10126 1 CH10126 SEAL - O RING

9 ch10126 1 ch10126密封O形環

10 T401156 1 T401156 OIL ELBOW

10 t401156 1 t401156油彎頭

11 CH10169 1 CH10169 COUPLING

11 ch10169 1 ch10169耦合

12 CH11906 2 CH11906 SEAL - O RING

12 ch11906 2 ch11906密封O形環

13 CH10170 1 CH10170 COUPLING

13 ch10170 1 ch10170耦合

14 CH10135 2 CH10135 SEAL - O RING

14 ch10135 2 ch10135密封O形環

15 CH10140 5 CH10140 BOLT

15 ch10140 5 ch10140螺栓

16 CH10277 4 CH10277 WASHER

16 ch10277 4 ch10277墊圈

17 CH12323 1 CH12323 BOLT

17 ch12323 1 ch12323螺栓

18 CH10277 2 CH10277 WASHER

18 ch10277 2 ch10277墊圈

19 CH12318 1 CH12318 SEAL - O RING

19 ch12318 1 ch12318密封O形環

20 CH10228 1 CH10228 SEAL - O RING

20 ch10228 1 ch10228密封O形環

21 CH10286 1 CH10286 PLUG

21 ch10286 1 ch10286插頭

22 CH11880 1 CH11880 SEAL - O RING

22 ch11880 1 ch11880密封O形環

23 T401160 1 T401160 OIL FILLER

23 t401160 1 t401160加油

24 CH10135 1 CH10135 SEAL - O RING

24 ch10135 1 ch10135密封O形環

25 T400368 1 T400368 SEAL - O RING

25 t400368 1 t400368密封O形環

26 CH12447 2 CH12447 BOLT

26 ch12447 2 ch12447螺栓

27 CH10277 2 CH10277 WASHER

27 ch10277 2 ch10277墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

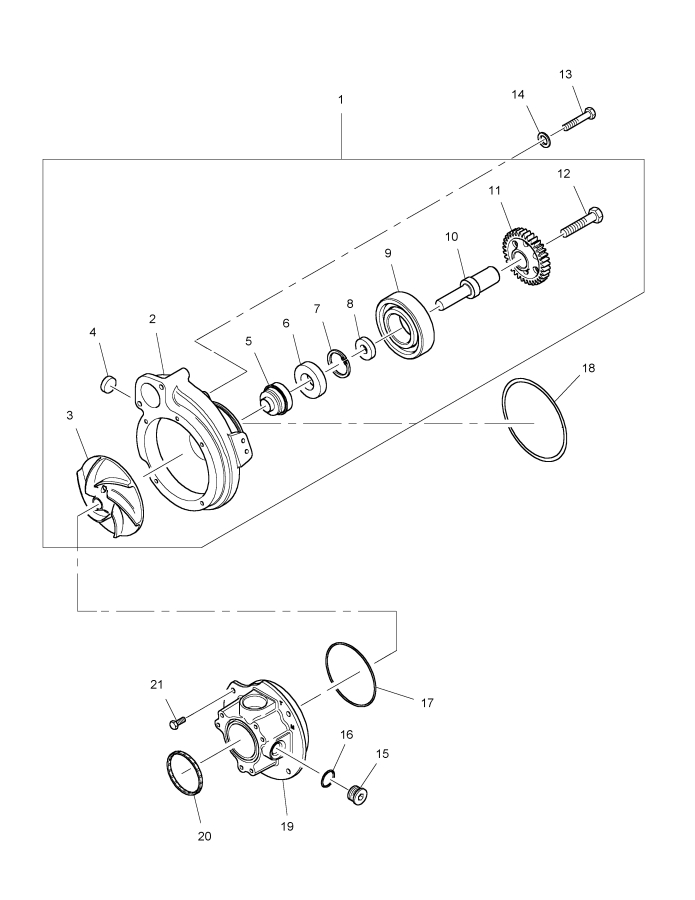

1 T401164 1 T401164 WATER PUMP

1 t401164 1 t401164水泵

13 CH10248 2 CH10248 BOLT

13 ch10248 2 ch10248螺栓

14 CH11819 2 CH11819 WASHER

14 ch11819 2 ch11819墊圈

15 CH11375 1 CH11375 PLUG

15 ch11375 1 ch11375插頭

16 CH10119 1 CH10119 SEAL - O RING

16 ch10119 1 ch10119密封O形環

17 CH10147 1 CH10147 SEAL - O RING

17 ch10147 1 ch10147密封O形環

18 CH12528 1 CH12528 SEAL - O RING

18 ch12528 1 ch12528密封O形環

19 T401166 1 T401166 COVER

19 t401166 1 t401166蓋

20 CH12530 1 CH12530 SEAL

20 ch12530 1 ch12530密封

21 CH12527 4 CH12527 BOLT

21 ch12527 4 ch12527螺栓

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

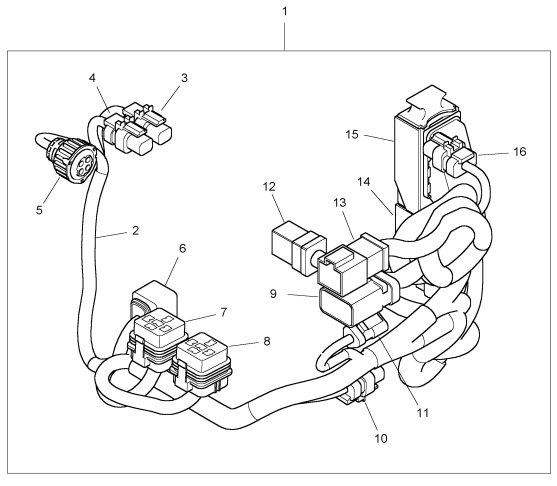

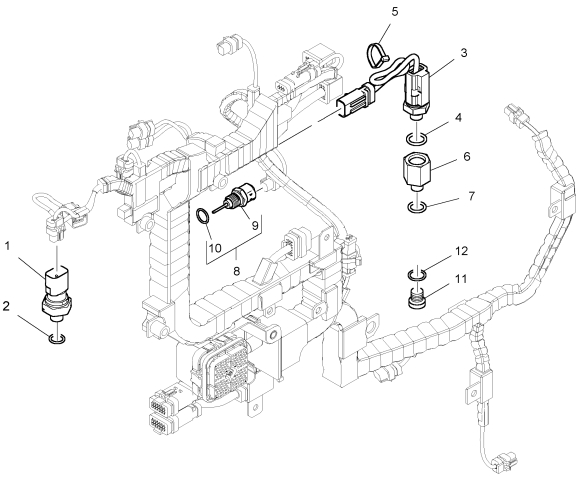

1 T414436 1 T414436 WIRING HARNESS

1 t414436 1 t414436線束

17 CH11981 17 CH11981 CABLE TIE

17 ch11981 17 ch11981電纜接頭

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

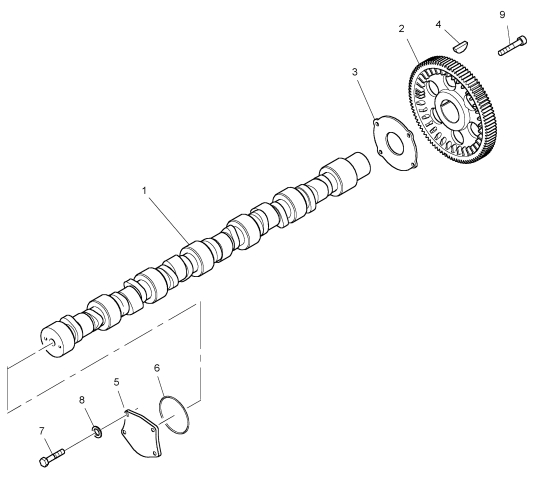

1 T401147 1 T401147 CAMSHAFT

1 t401147 1 t401147凸輪軸

2 T401148 1 T401148 CAMSHAFT GEAR

2 t401148 1 t401148凸輪軸齒輪

3 CH12519 1 CH12519 THRUST WASHER

3 ch12519 1 ch12519推力墊圈

4 CH10005 1 CH10005 WOODRUFF KEY

4 ch10005 1 ch10005半圓鍵

5 CH12435 1 CH12435 COVER

5 ch12435 1 ch12435蓋

6 CH12437 1 CH12437 SEAL - O RING

6 ch12437 1 ch12437密封O形環

7 CH11815 4 CH11815 BOLT

7 ch11815 4 ch11815螺栓

8 CH10277 4 CH10277 WASHER

8 ch10277 4 ch10277墊圈

9 CH12438 4 CH12438 BOLT

9 ch12438 4 ch12438螺栓

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

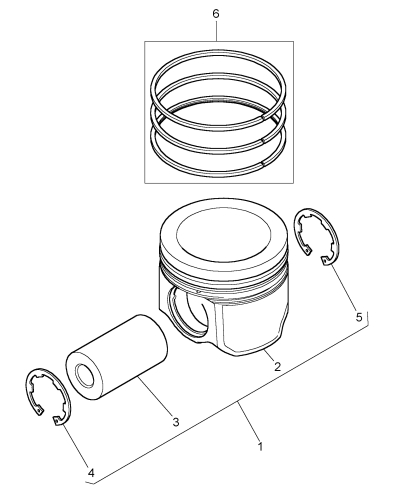

1 T401153 6 T401153 PISTON KIT

1 t401153 6 t401153活塞套件

6 T401154 6 T401154 PISTON RING KIT

6 t401154 6 t401154活塞環組件

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

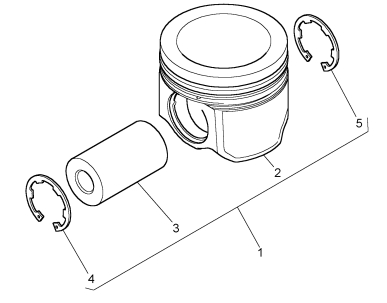

2 1 PISTON

2 1活塞

3 CH12332 1 CH12332 GUDGEON PIN

3 ch12332 1 ch12332活塞銷

4 T401150 1 T401150 CIRCLIP

4 t401150 1 t401150卡簧

5 T401150 1 T401150 CIRCLIP

5 t401150 1 t401150卡簧

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

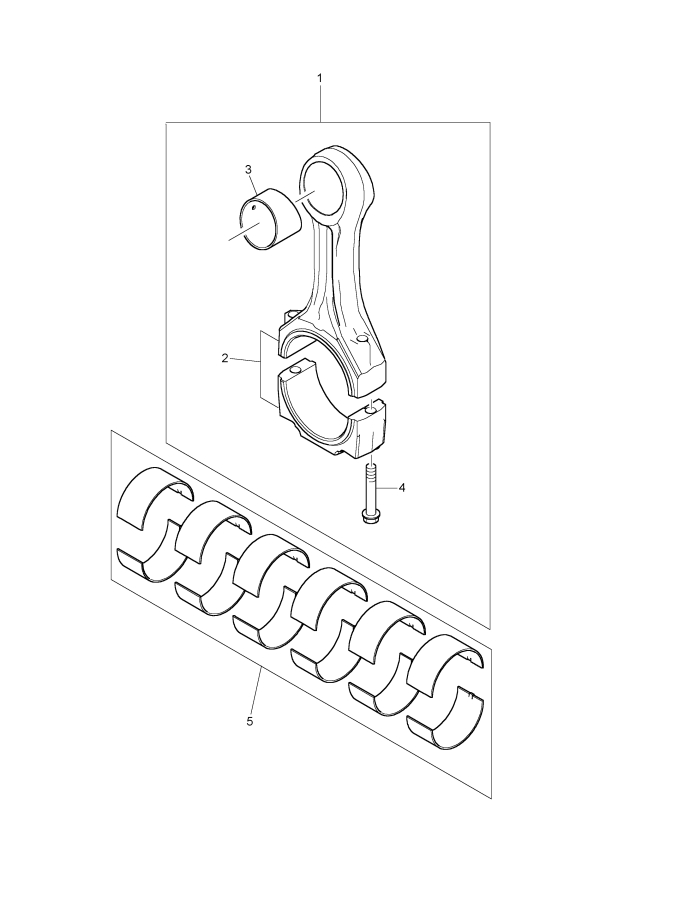

1 CH12635 6 CH12635 CON ROD ASSEMBLY

1 ch12635 6 ch12635連桿總成

5 KRP3023 1 KRP3023 BIG END BEARING KIT

5 krp3023 1 krp3023大頭軸承盒

(5) KRP3023/051 1 KRP3023/051 BIG END BRG KIT - U/S

（5）051 / 1 / 051 krp3023 krp3023大頭BRG盒U / S

(5) KRP3023/076 1 KRP3023/076 BIG END BRG KIT - U/S

（5）076 / 1 / 076 krp3023 krp3023大頭BRG盒U / S

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

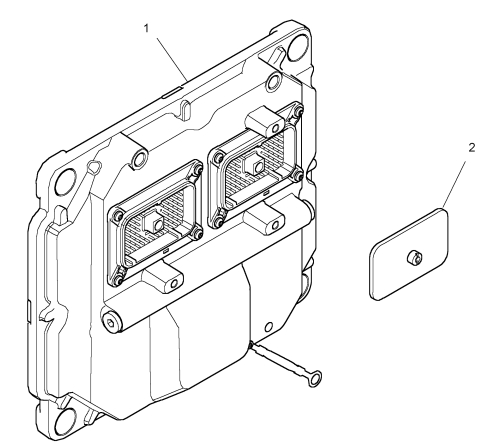

1 T400052 1 T400052 ENGINE CONTROL MODULE

1 t400052 1 t400052發動機ECM控制模塊

2 CH12655 2 CH12655 COVER

2 ch12655 2 ch12655蓋

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

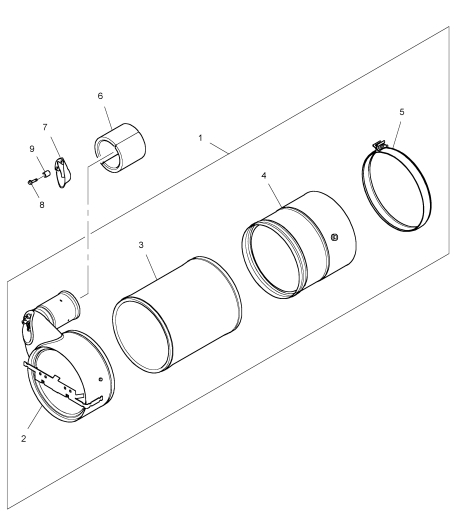

1 T401215 1 T401215 AIR FILTER ASSEMBLY

1 t401215 1 t401215空氣濾清器總成

6 T401220 1 T401220 SHIELD

6 t401220 1 t401220盾

7 T401221 1 T401221 HEATSHIELD

7 t401221 1 t401221防熱

8 T401222 2 T401222 BOLT

8 t401222 2 t401222螺栓

9 T409444 2 T409444 SPACER

9 t409444 2 t409444間隔

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

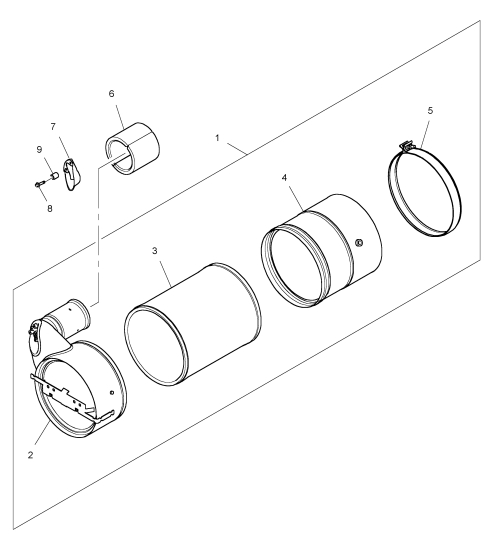

2 T401219 1 T401219 PIPE - AIR

2 t401219 1 t401219管空氣

3 1 AIR FILTER ASSEMBLY

1空氣濾清器總成3

4 T401217 1 T401217 PIPE - AIR

4 t401217 1 t401217管空氣

5 T401216 2 T401216 CLAMP

5 t401216 2 t401216夾

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

1 T401187 1 T401187 HOUSING

1 t401187 1 t401187

2 T400066 1 T400066 SENSOR

2 t400066 1 t400066傳感器

3 T401184 1 T401184 BRACKET

3 t401184 1 t401184支架

4 T409903 6 T409903 SCREW

4 t409903 6 t409903螺釘

5 T410249 1 T410249 SENSOR

5 t410249 1 t410249傳感器

6 2415H011 1 2415H011 SEAL - O RING

6 2415h011 1 2415h011密封O形環

7 T401185 2 T401185 BOLT

7 t401185 2 t401185螺栓

8 T409236 2 T409236 WASHER

8 t409236 2 t409236墊圈

9 T400427 1 T400427 PLUG

9 t400427 1 t400427插頭

10 CH11880 1 CH11880 SEAL - O RING

10 ch11880 1 ch11880密封O形環

11 T401188 2 T401188 SEAL - O RING

11 t401188 2 t401188密封O形環

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

1 T407269 1 T407269 AIR PRESSURE SENSOR

1 t407269 1 t407269空氣壓力傳感器

2 2415H011 1 2415H011 SEAL - O RING

2 2415h011 1 2415h011密封O形環

3 T401485 1 T401485 SENSOR

3 t401485 1 t401485傳感器

4 T409213 1 T409213 SEAL - O RING

4 t409213 1 t409213密封O形環

5 CH10054 2 CH10054 CABLE TIE

5 ch10054 2 ch10054電纜接頭

6 T401486 1 T401486 ADAPTOR

6 t401486 1 t401486適配器

7 T409314 1 T409314 SEAL - O RING

7 t409314 1 t409314密封O形環

8 KRP1687 1 KRP1687 TEMPERATURE SENSOR

8 krp1687 1 krp1687溫度傳感器

11 CH10287 1 CH10287 PLUG

11 ch10287 1 ch10287插頭

12 T406205 1 T406205 SEAL - O RING

12 t406205 1 t406205密封O形環

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

2 1 TEMPERATURE SENSOR

1溫度傳感器2

3 T406205 1 T406205 SEAL - O RING

3 t406205 1 t406205密封O形環

3 CH10230 1 CH10230 SEAL - O RING

3 ch10230 1 ch10230密封O形環

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

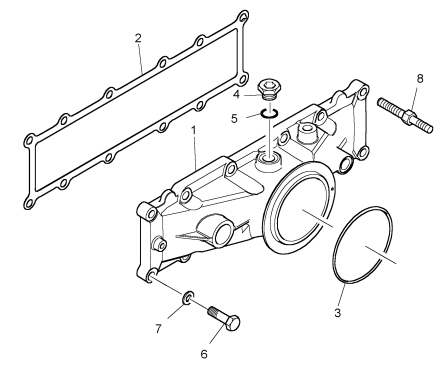

1 T400140 1 T400140 INTAKE MANIFOLD

1 t400140 1 t400140進氣歧管

2 CH12127 1 CH12127 GASKET - IND MANIFOLD

2 ch12127 1 ch12127墊片IND流形

3 CH12132 1 CH12132 SEAL - O RING

3 ch12132 1 ch12132密封O形環

4 CH10286 2 CH10286 PLUG

4 ch10286 2 ch10286插頭

5 CH11880 2 CH11880 SEAL - O RING

5 ch11880 2 ch11880密封O形環

6 CH10124 8 CH10124 BOLT

6 ch10124 8 ch10124螺栓

7 CH11819 12 CH11819 WASHER

7 ch11819 12 ch11819墊圈

8 CH12126 4 CH12126 STUD

8 ch12126 4 ch12126螺柱

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

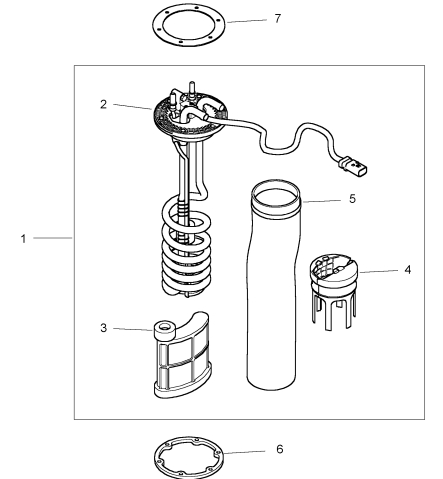

1 T419761 1 T419761 HEATER KIT

1 t419761 1 t419761加熱器組件

6 T414345 1 T414345 GASKET

6 t414345 1 t414345墊片

7 T414026 1 T414026 PLATE

7 t414026 1 t414026板

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

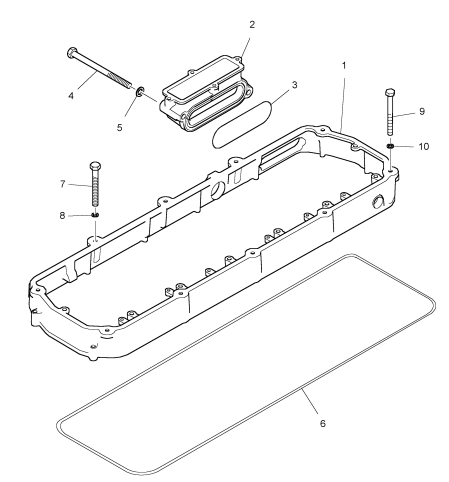

1 T401155 1 T401155 VALVE COVER

1 t401155 1 t401155閥門蓋

2 T417055 1 T417055 ADAPTOR

2 t417055 1 t417055適配器

3 T400396 1 T400396 SEAL - O RING

3 t400396 1 t400396密封O形環

4 T400397 2 T400397 BOLT

4 t400397 2 t400397螺栓

5 CH10277 2 CH10277 WASHER

5 ch10277 2 ch10277墊圈

6 CH12459 1 CH12459 SEAL - ROCKER BOX

6 ch12459 1 ch12459密封搖臂箱

7 CH11814 7 CH11814 METRIC BOLT

7 ch11814 7 ch11814公制螺栓

8 CH10277 7 CH10277 WASHER

8 ch10277 7 ch10277墊圈

9 CH10140 6 CH10140 BOLT

9 ch10140 6 ch10140螺栓

10 CH10277 6 CH10277 WASHER

10 ch10277 6 ch10277墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

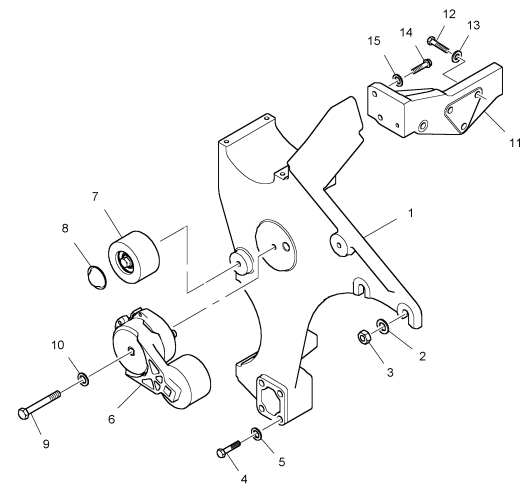

1 T401249 1 T401249 ALTERNATOR BRACKET

1 t401249 1 t401249充電發電機支架

2 CH10099 2 CH10099 WASHER

2 ch10099 2 ch10099墊圈

3 317013 2 317013 NUT

317013、2螺母317013 3

4 CH10248 4 CH10248 BOLT

4 ch10248 4 ch10248螺栓

5 CH11819 4 CH11819 WASHER

5 ch11819 4 ch11819墊圈

6 T401253 1 T401253 TENSIONER

6 t401253 1 t401253張緊器

7 T401251 1 T401251 IDLER PULLEY

7 t401251 1 t401251惰輪

8 T401252 1 T401252 COVER

8 t401252 1 t401252蓋

9 CH12326 1 CH12326 BOLT

9 ch12326 1 ch12326螺栓

10 CH11819 1 CH11819 WASHER

10 ch11819 1 ch11819墊圈

11 T401250 1 T401250 BRACKET

11 t401250 1 t401250支架

12 CH12612 4 CH12612 BOLT

12 ch12612 4 ch12612螺栓

13 CH11819 4 CH11819 WASHER

13 ch11819 4 ch11819墊圈

14 CH12447 2 CH12447 BOLT

14 ch12447 2 ch12447螺栓

15 CH10277 2 CH10277 WASHER

15 ch10277 2 ch10277墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

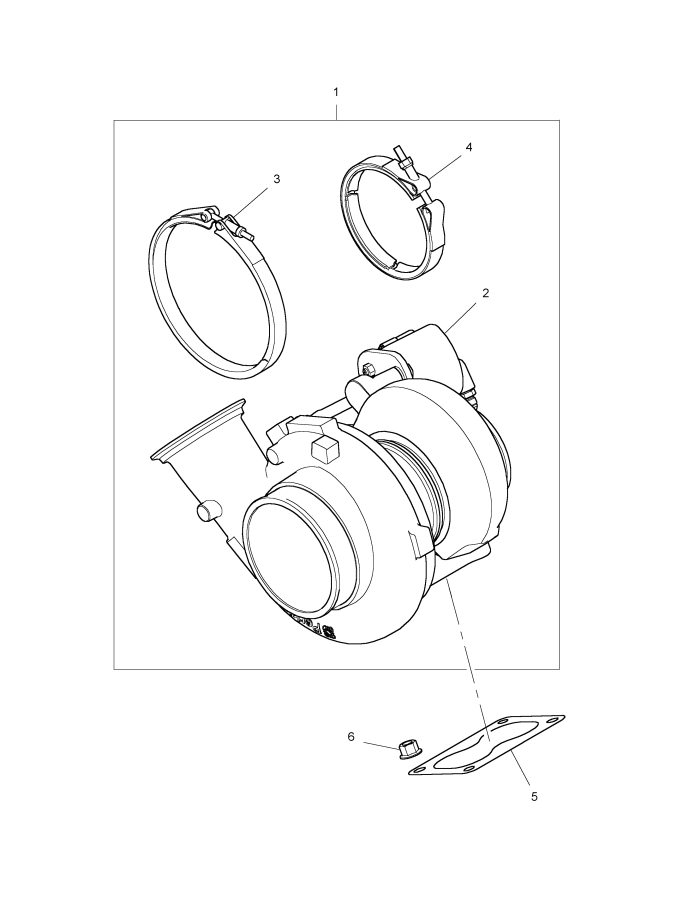

1 T401122 1 T401122 TURBOCHARGER

1 t401122 1 t401122渦輪增壓器

(1) T401122R 1 T401122R TURBOCHARGER - EXCHANGE

（1）t401122r 1 t401122r渦輪增壓器交換

5 T401121 1 T401121 GASKET - TURBOCHARGER

5 t401121 1 t401121墊片- TURBOCHARGER

6 T401124 4 T401124 NUT

6 t401124 4 t401124螺母

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

1 T400307 1 T400307 COMPRESSOR

1 t400307 1 t400307壓縮機

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

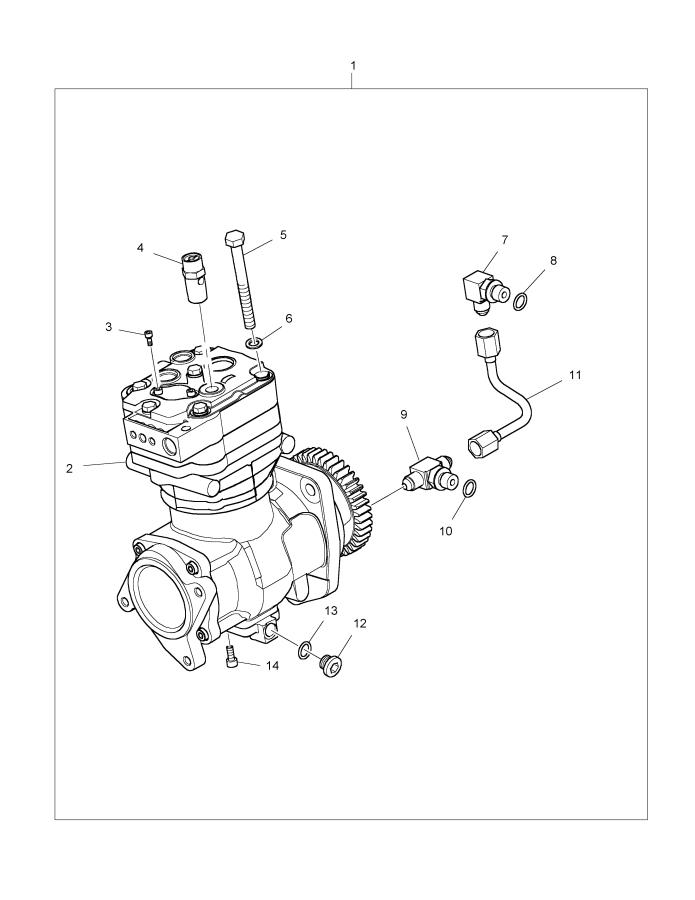

2 1 COMPRESSOR

2壓縮機1

3 T401539 2 T401539 BOLT

3 t401539 2 t401539螺栓

4 T401538 1 T401538 VALVE

4 t401538 1 t401538閥門

5 CH10140 6 CH10140 BOLT

5 ch10140 6 ch10140螺栓

6 CH10277 6 CH10277 WASHER

6 ch10277 6 ch10277墊圈

7 T409286 1 T409286 ADAPTOR

7 t409286 1 t409286適配器

8 T409314 1 T409314 SEAL - O RING

8 t409314 1 t409314密封O形環

9 T401540 1 T401540 ADAPTOR

9 t401540 1 t401540適配器

10 T409314 1 T409314 SEAL - O RING

10 t409314 1 t409314密封O形環

11 T401536 1 T401536 PIPE

11 t401536 1 t401536管

12 CH10285 1 CH10285 PLUG

12 ch10285 1 ch10285插頭

13 T409314 1 T409314 SEAL - O RING

13 t409314 1 t409314密封O形環

14 T401537 4 T401537 BOLT

14 t401537 4 t401537螺栓

15 T401542 1 T401542 VALVE KIT - COMPRESSOR

15 t401542 1 t401542閥門套件-壓縮機

16 T401543 1 T401543 GASKET KIT - COMPRESSOR

16 t401543 1 t401543墊片套件-壓縮機

17 T401544 1 T401544 REPAIR KIT - COMPRESSOR

17 t401544 1 t401544修理工具-壓縮機

18 T401541 1 T401541 SEAL KIT - COMPRESSOR

18 t401541 1 t401541密封壓縮機

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

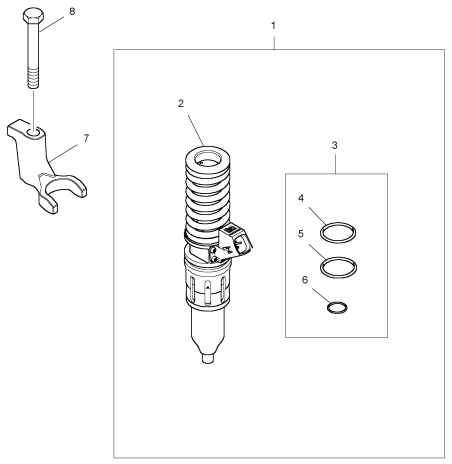

1 T401194 6 T401194 INJECTOR

1 t401194 6 t401194噴油器

(1) T401194R 6 T401194R INJECTOR - EXCHANGE

（1）t401194r 6 t401194r噴油器交換

7 T401195 6 T401195 INJECTOR CLAMP

7 t401195 6 t401195噴油器夾具

8 CH12326 6 CH12326 BOLT

8 ch12326 6 ch12326螺栓

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

1 T401119 1 T401119 OIL FILTER HEAD

1 t401119 1 t401119油濾頭

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

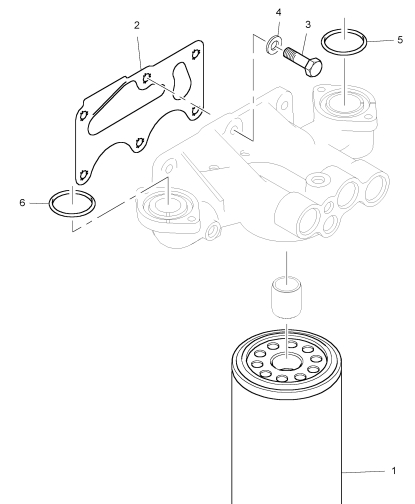

1 4587260 1 4587260 OIL FILTER

4587260、1號4587260油過濾器

2 CH12759 1 CH12759 GASKET - OIL FILTER HEAD

2 ch12759 1 ch12759墊片油濾頭

3 CH10432 6 CH10432 BOLT

3 ch10432 6 ch10432螺栓

4 T405615 6 T405615 WASHER

4 t405615 6 t405615墊圈

5 T400222 1 T400222 SEAL - O RING

5 t400222 1 t400222密封O形環

6 T400222 1 T400222 SEAL - O RING

6 t400222 1 t400222密封O形環

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

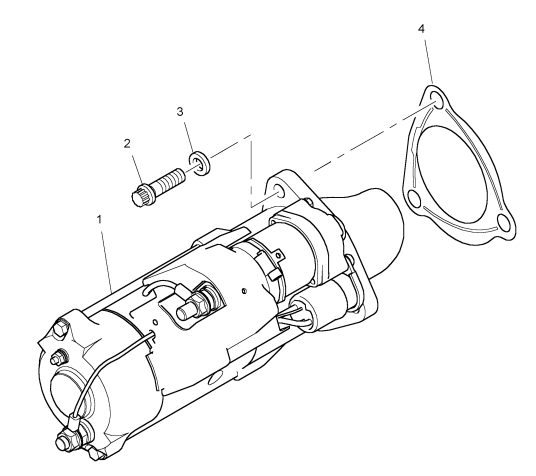

1 T400305 1 T400305 STARTER MOTOR

1 t400305 1 t400305起動機 啟動馬達

(1) T400305R 1 T400305R STARTER MOTOR

（1）t400305r 1 t400305r起動機 啟動馬達

2 T400720 3 T400720 BOLT

2 t400720 3 t400720螺栓

3 T400724 3 T400724 WASHER

3 t400724 3 t400724墊圈

4 CH10310 1 CH10310 GASKET

4 ch10310 1 ch10310墊片

5 1 STARTER MOTOR LABEL

1起動機 啟動馬達電機標簽5

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

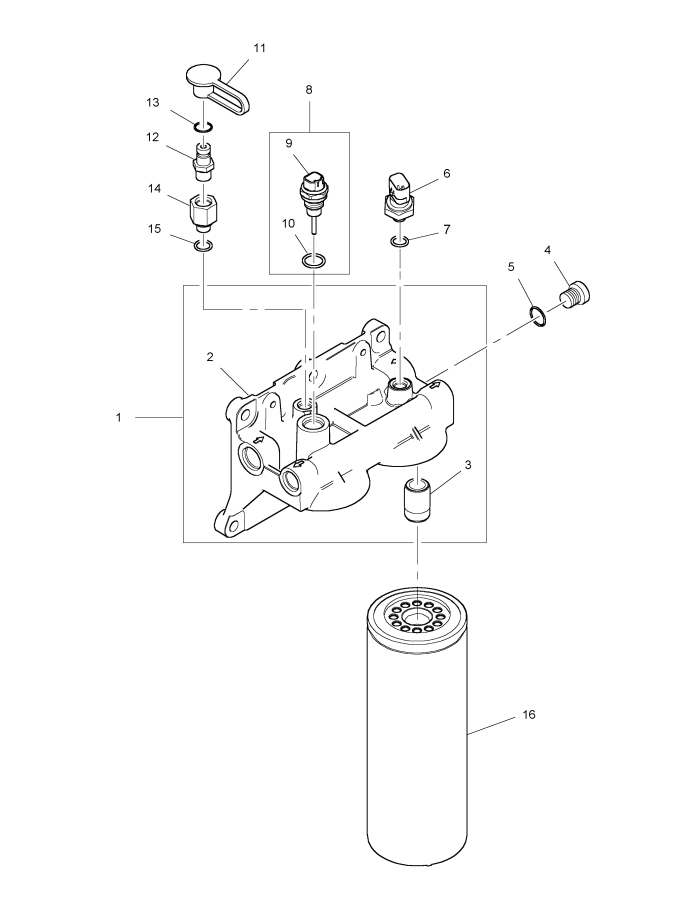

1 T401127 1 T401127 FUEL FILTER HEAD

1 t401127 1 t401127燃油濾頭

4 CH10287 1 CH10287 PLUG

4 ch10287 1 ch10287插頭

5 CH10230 1 CH10230 SEAL - O RING

5 ch10230 1 ch10230密封O形環

6 T406711 1 T406711 OIL PRESSURE SENSOR

6 t406711 1 t406711機油壓力傳感器

7 2415H011 1 2415H011 SEAL - O RING

7 2415h011 1 2415h011密封O形環

8 KRP1687 1 KRP1687 TEMPERATURE SENSOR

8 krp1687 1 krp1687溫度傳感器

11 CH11411 1 CH11411 DUST SHIELD

11 ch11411 1 ch11411防塵罩

12 CH11410 1 CH11410 PLUG

12 ch11410 1 ch11410插頭

13 CH11880 1 CH11880 SEAL - O RING

13 ch11880 1 ch11880密封O形環

14 T401128 1 T401128 ADAPTOR

14 t401128 1 t401128適配器

15 T409315 1 T409315 SEAL - O RING

15 t409315 1 t409315密封O形環

16 4650996 2 4650996 FUEL FILTER

4650996號2號4650996燃油濾清器

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

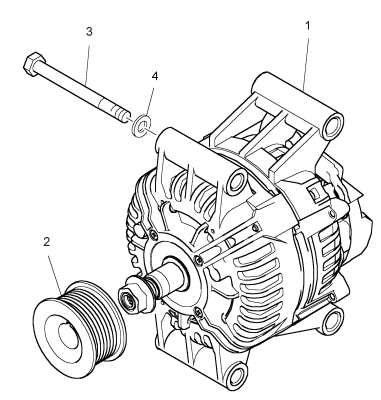

1 T400306 1 T400306 ALTERNATOR

1 t400306 1 t400306充電發電機

(1) T400306R 1 T400306R EXCHANGE ALTERNATOR

（1）t400306r 1 t400306r交流充電發電機

2 T401130 1 T401130 ALTERNATOR PULLEY

2 t401130 1 t401130充電發電機皮帶輪

3 T401131 4 T401131 BOLT

3 t401131 4 t401131螺栓

4 T405615 4 T405615 WASHER

4 t405615 4 t405615墊圈

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

項目   零件號   數量    新零件號    描述

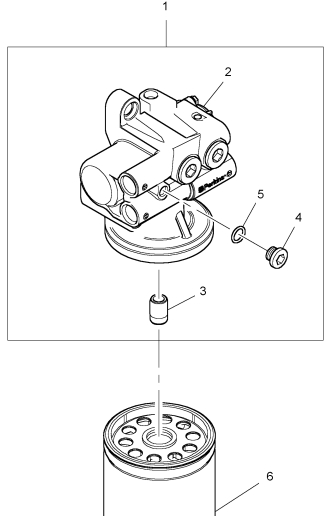

1 T401226 1 T401226 FUEL FILTER HEAD

1 t401226 1 t401226燃油濾頭

6 4587259 1 4587259 FUEL FILTER

4587259號1號4587259燃油濾清器

6 1 FUEL FILTER

1燃油濾清器6

7 T400905 1 T400905 DRAIN PLUG

7 t400905 1 t400905塞
